    Metal Palisade Fencing

    Here at Jack Arnold UK Ltd, we specialise in the manufacture and supply of high security palisade fencing products.

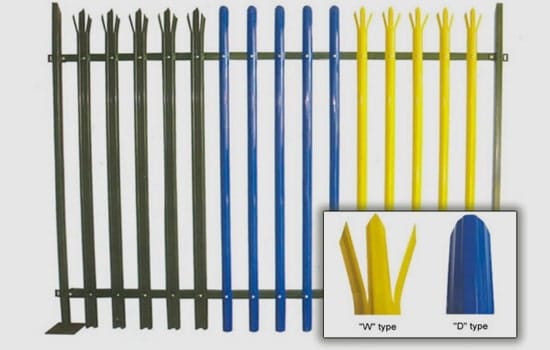

    Standard palisade fencing is available within the traditional ‘D’ section pales or ‘W’ section pales. We supply a full range of heights starting from 1.2 metres up to 3.6 metres.

    All fencing purchased is made from material within the requirements of British Standard 1722 part:12. We supply panels too which are normally delivered loose for assembly on site in bays of 2.75m.
    If you require a fully welded option of palisade bays, this is possible, but at an additional cost.

    Palisade fencing is becoming more popular, and because of its strength and its ability to be designed specifically for security fencing applications, palisade is used extensively for government projects and businesses as the ideal visual barrier against would-be intruders.

    For an additional cost per metre you can have the palisade coated in a polyester powder finish to any standard RAL colour.

    Features and benefits

    • Hot-dipped galvanised to BS EN ISO 1461:1999
    • Thermal zinc sprayed
    • Secure, robust and versatile
    • Provides a physical and visible deterrent against intruders and accommodates difficult site conditions
    • Easy to erect and repair
    • Product has long life expectancy in service
    • No expensive equipment required should a damaged pale need to be replaced

    We use state of the art equipment to manufacture designs to suit any site conditions – for example, to accommodate base plates for bolting down to concrete or cranked posts for fixing to walls.

    Our palisade is manufactured in the UK, and extensive stocks are available for immediate nationwide dispatch with optional crane offloading.

    Palisade Fencing


    Posts are generally 102 x 44 RSJ – however, for a higher security installation, 127 x 76 UB can be supplied. Posts can also be manufactured with base plates and wall fixings.


    To fix the pales to the rails, two types of fixings are available: rivets and collars (M6 and M8), for which a fencing rivet gun is required or M8 bolts with permacone fixings that are designed to snap off during erection for a secure fixing.


    Metal palisade fencing can be supplied self-coloured, galvanised or galvanised and polyester powder-coated in virtually any colour to order.

    Palisade Fencing
    Palisade Fencing
    Palisade Fencing
    Palisade Fencing
    Palisade Fencing


    Rails are available in four sizes, 40 x 40, 45 x 45, 50 x 50 and 65 x 50. The size of the rail is dependent on the height of the fence and the level of security required.

    General industrial security

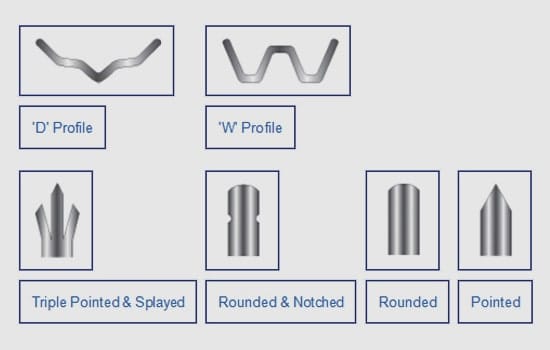

    • ‘W’ profile 2.0mm 2.5mm 3.0mm
    • ‘D’ profile


    Gates are also available in the form of singular pedestrian gates or double vehicle gates, all as per the above spec. These gates are manufactured to look in keeping with the rest of the palisade fencing system and are very reasonable as well as highly durable. All gates are available in a RAL colour as specified.
